Quick Release Marine

Quick Release Marine

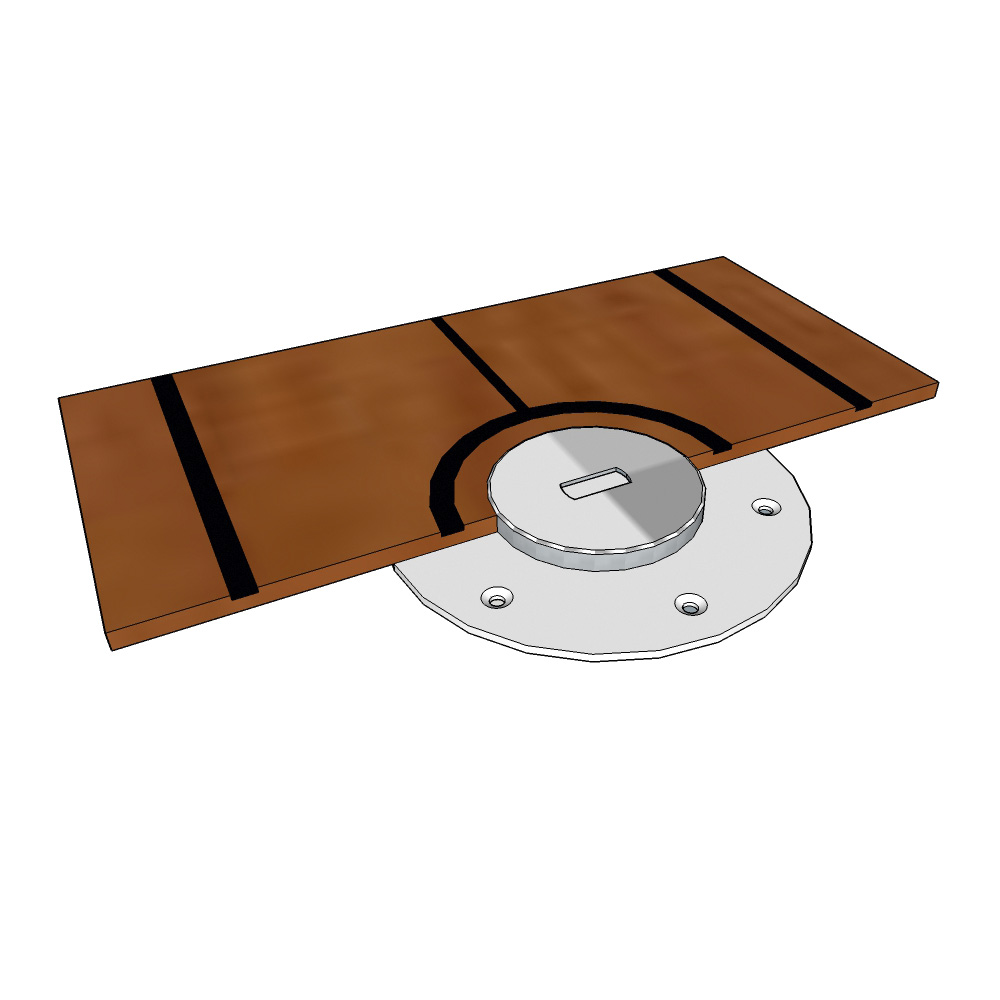

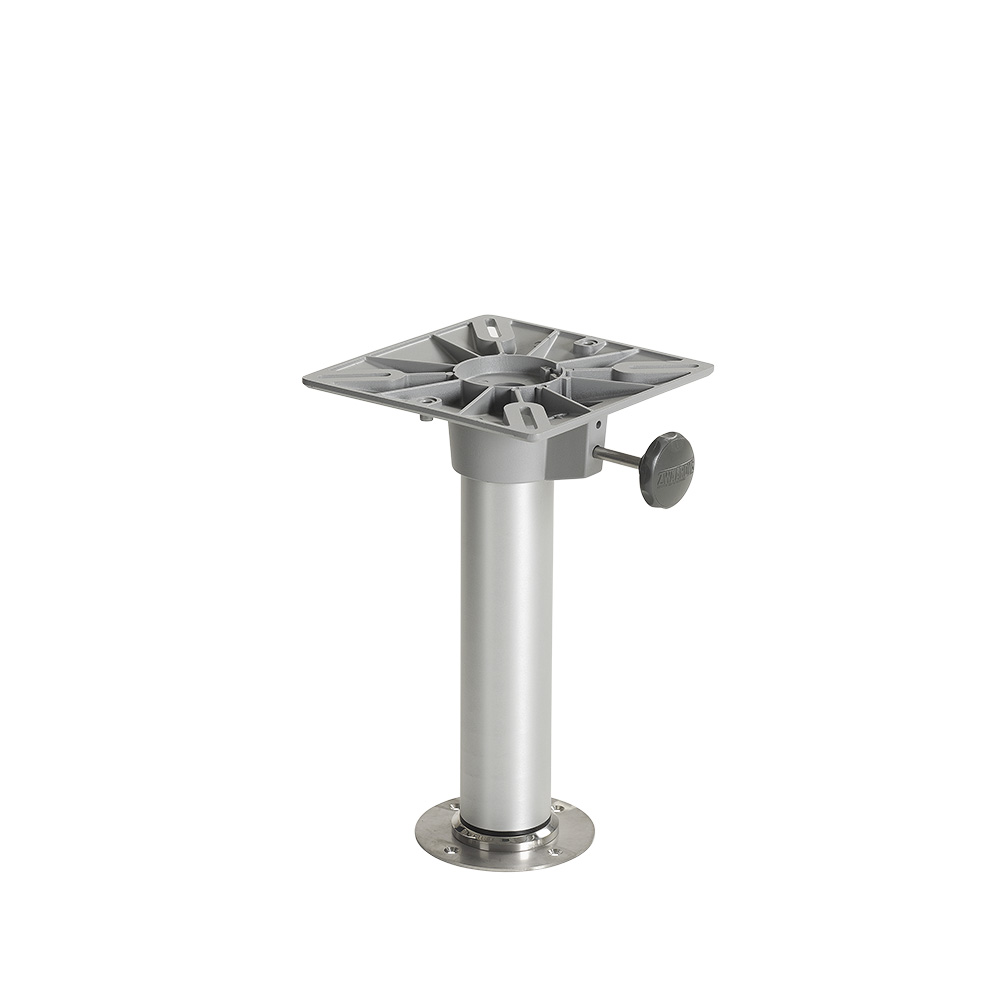

Free standing, easily removable table pedestal with comfortable locking system for optimal space in RV and boat. The pedestal is easy to install and remove by 270° pivoting moverment of the column. Vinyl support for removable and pivoting table top. Base gradually rising up to 12 mm to avoid stumbling. Extractable bench/bed systems in campervans will slide over the base easily. Available with a coated steel base for RV‘s or a polished stainless steel base with watertight slot for maritime purposes.

Columns are available with diameter 40 and 60 mm for table position and 76 mm for bed and table position.
3 models, available in several heights:

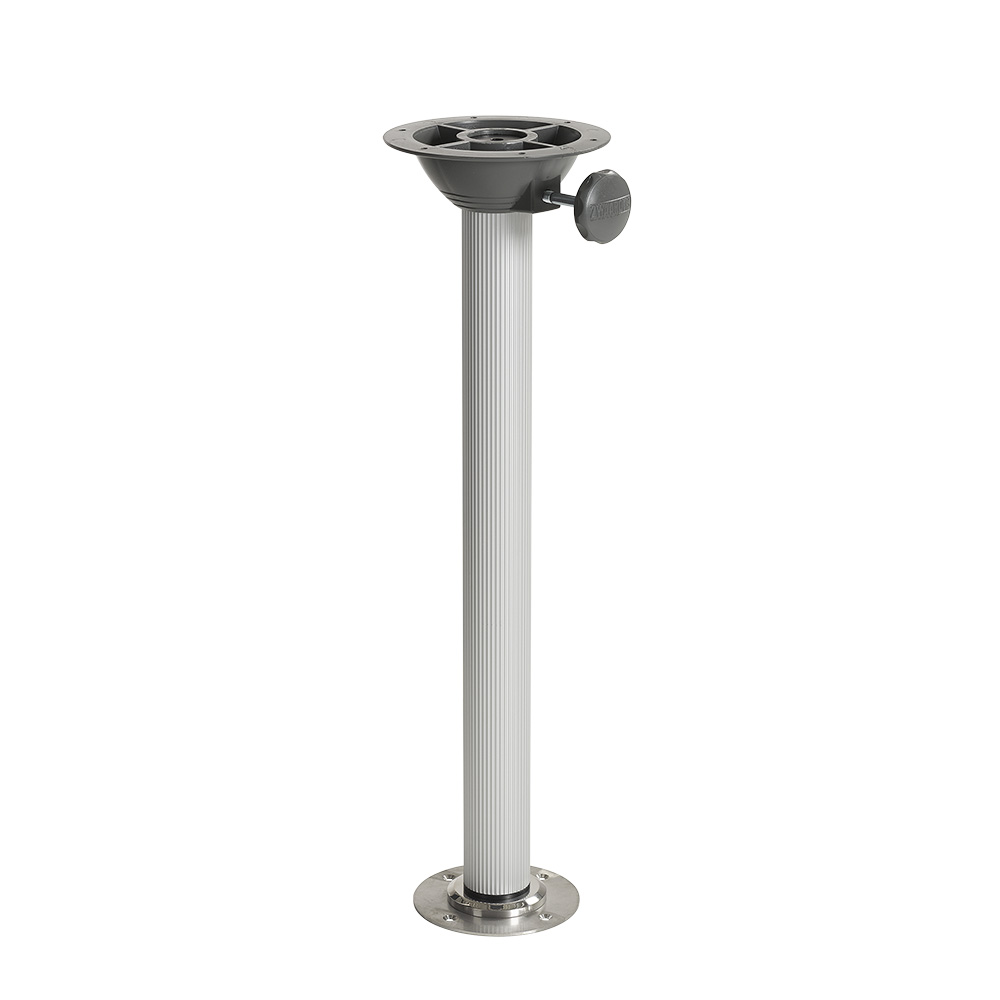

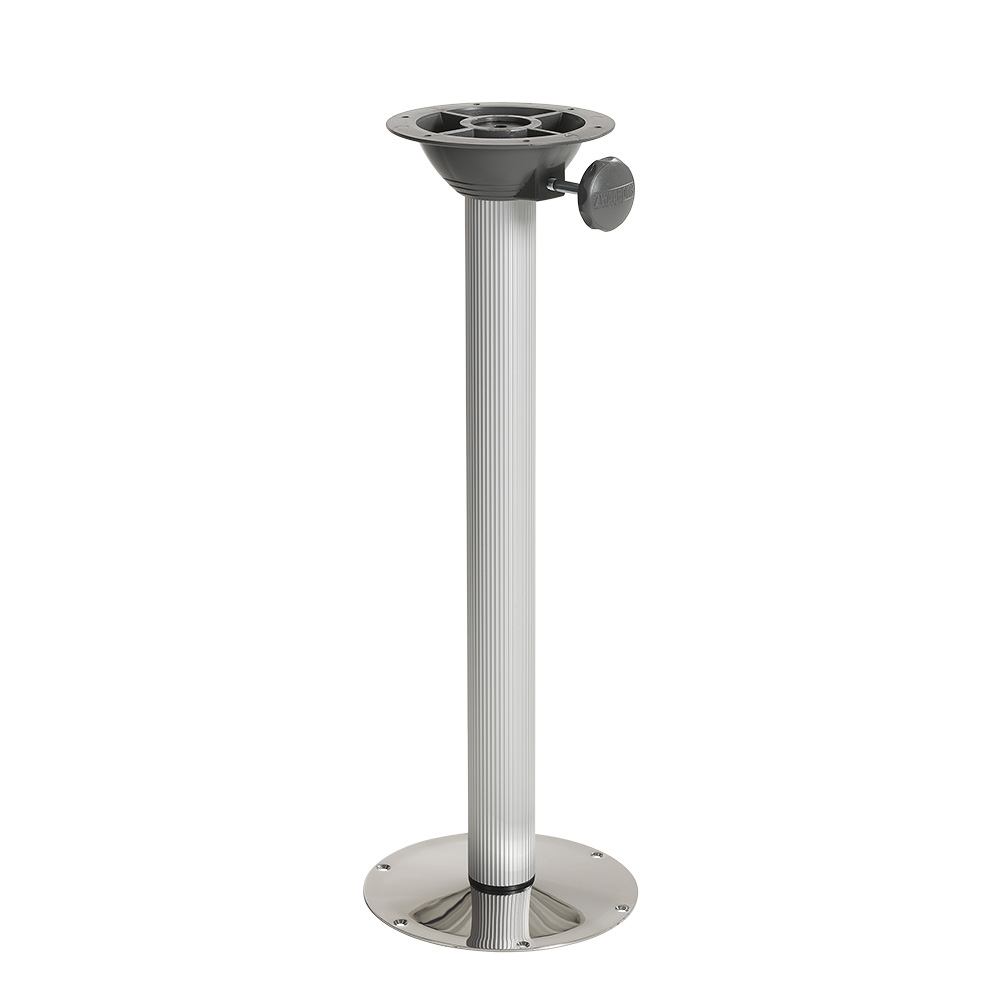

• Anodized aluminum, ribbed surface

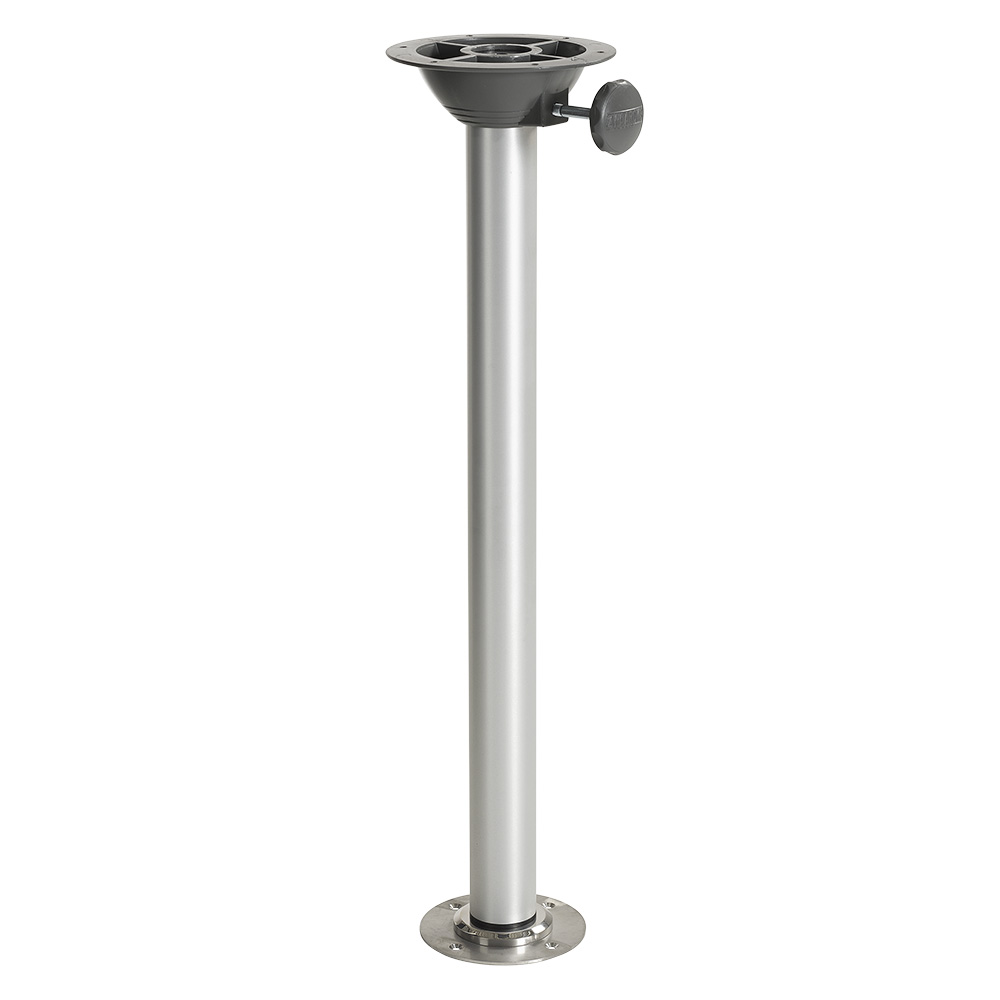

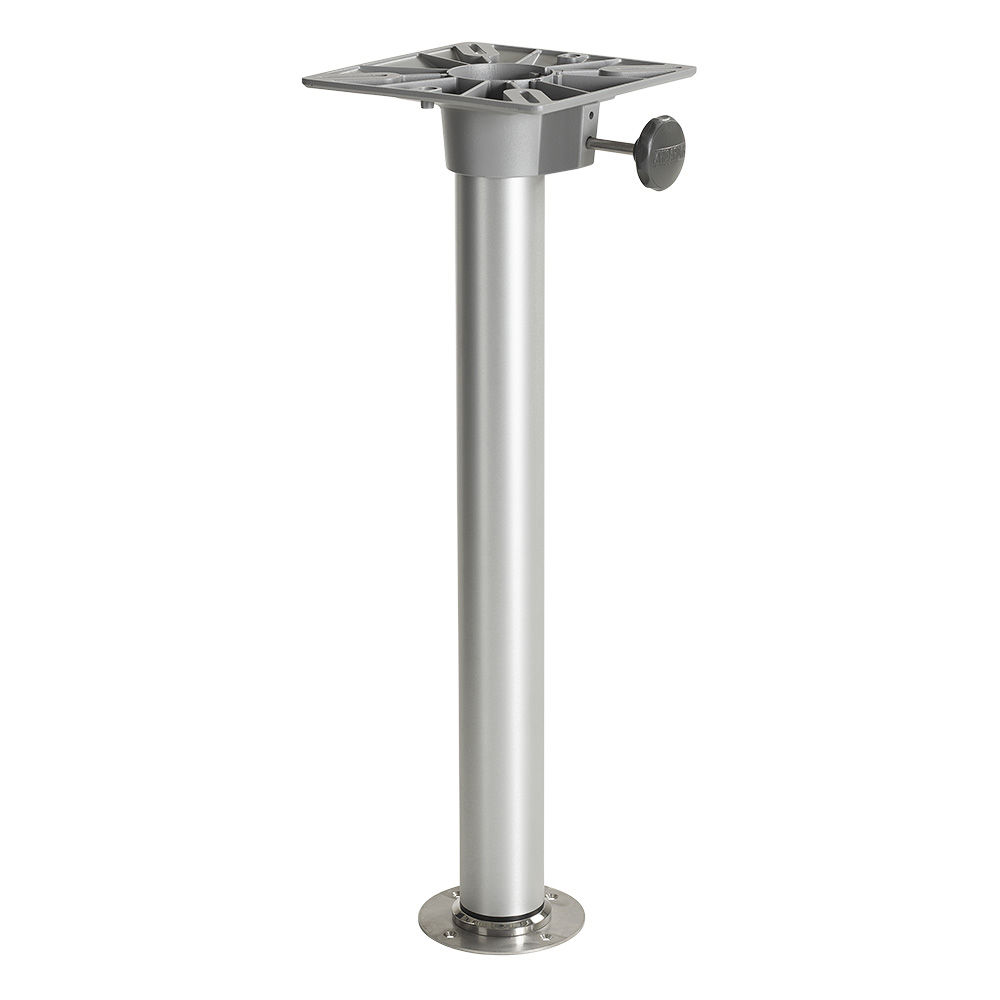

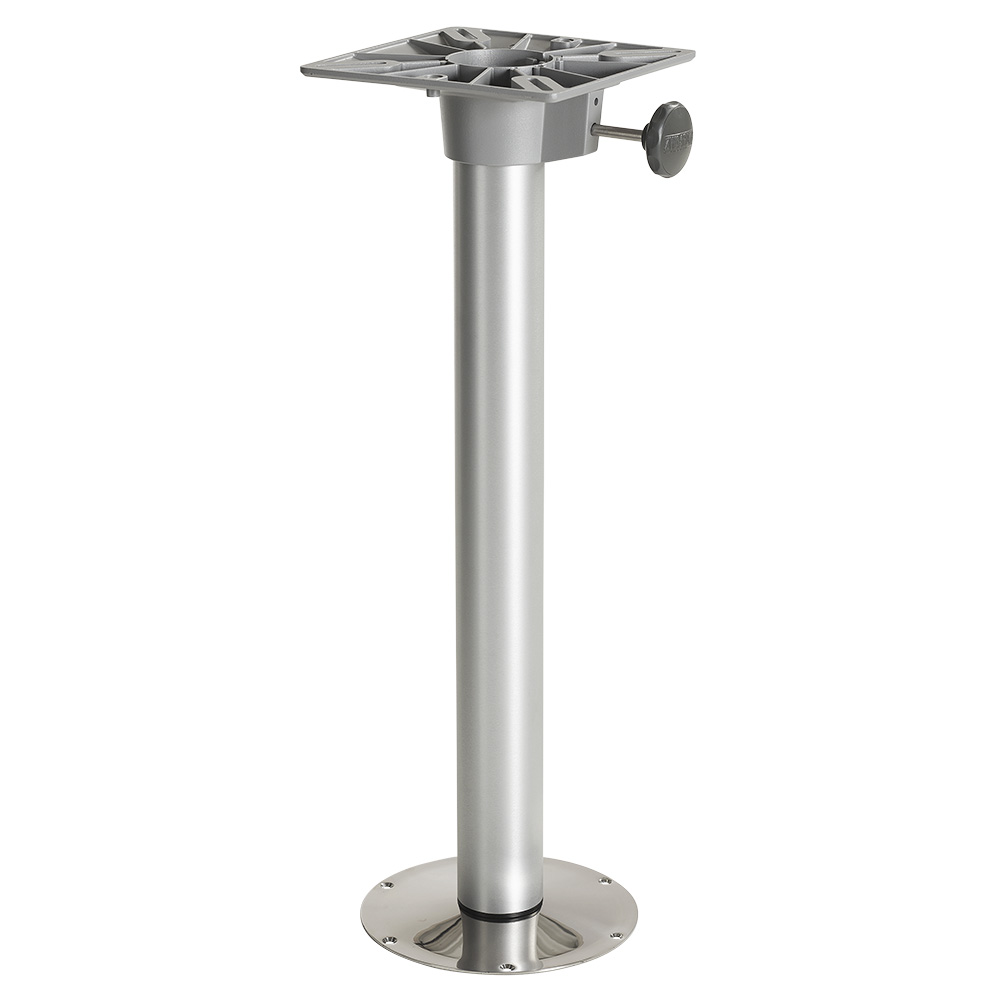

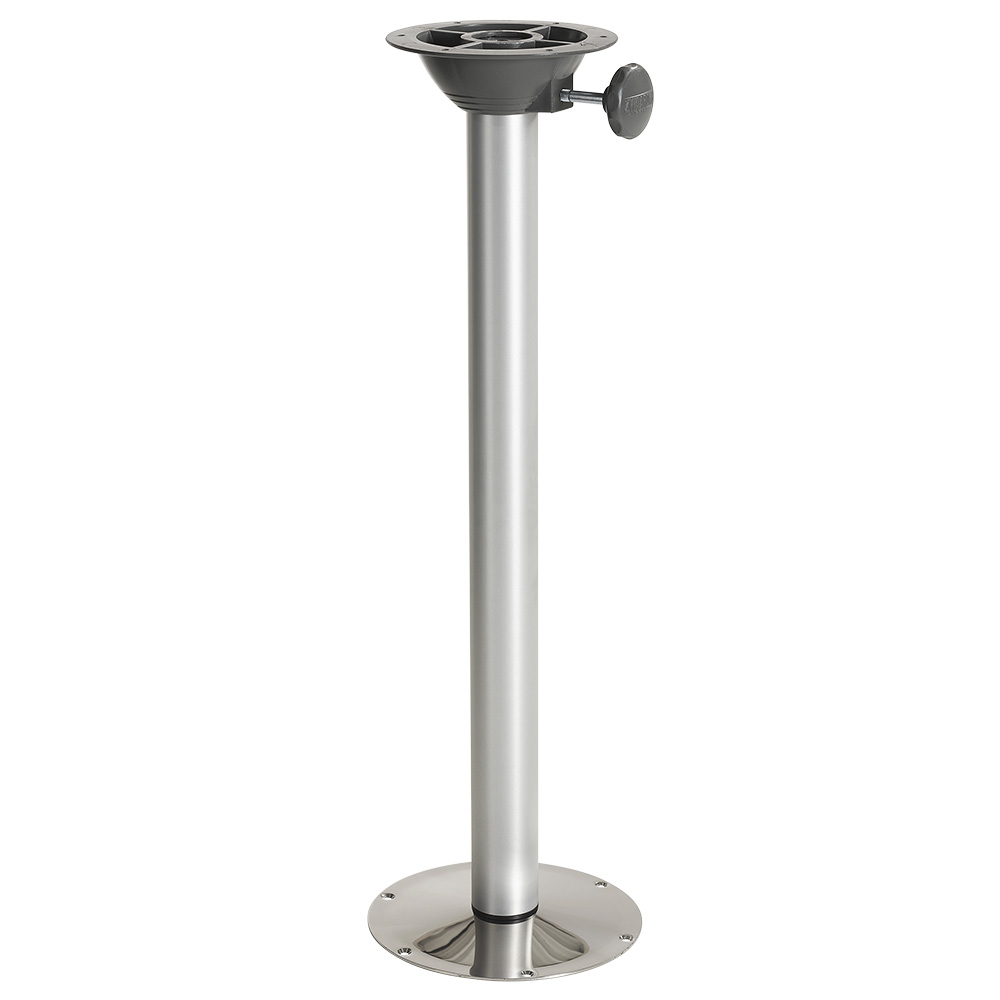

• Anodized aluminum, smooth surface
• S/S 316, mirror polished

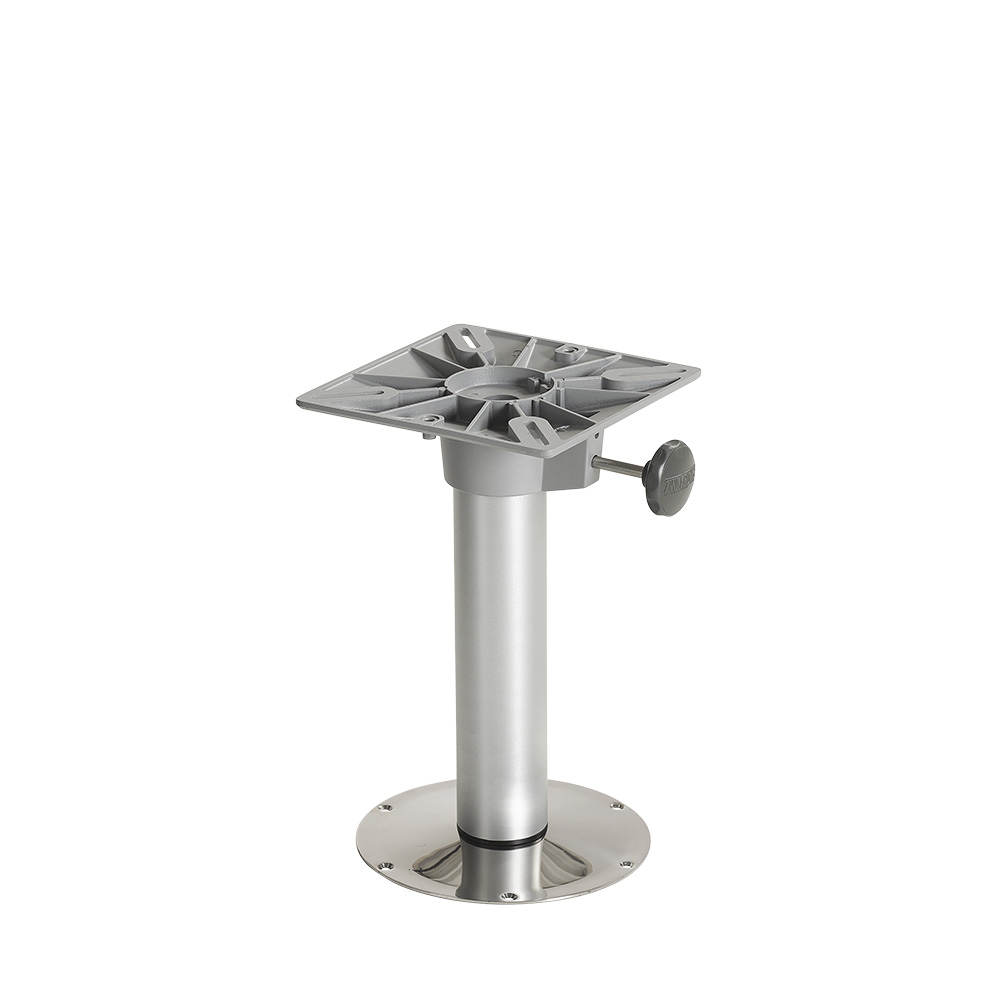

Standard heights 680 and 730 mm. Each Ø 76 mm model is also available with length 420 mm for bed height.
Rubber clamps are available for the demounted column.
Other solutions for table tops with pivoting, folding or sliding movements on request.

This pedestal is not suitable as seat pedestal!

Item no. Item Price / Euro [without VAT]
64029Quick Release Marine, base Ø 150 mm, height 14 mm, STS 316, mirror polished81,00
64022Quick Release Marine, base Ø 245 mm, height 14 mm, STS 316, mirror polished118,00
64024Quick Release Marine, hidden base, mounting plate Ø 150 mm, visible surface Ø 90 mm, STS 316, mirror polished103,00
Quick Release RV/Marine table support, for pivoting and removable table top
63776-QRFitting column Ø 76 mm, grey powder coated, aluminum75,00
64023Fitting column Ø 60 mm, grey vinyl69,00
64028Fitting column Ø 40 mm, grey vinyl57,00
Quick Release RV/Marine table columns
67600Quick Release column, Ø 40 mm, anodized aluminium, ribbed, others lengths upon requestauf Anfrage/on request/op aanvraag
67666Quick Release column, Ø 40 mm, anodized aluminium, ribbed, length 680 mm76,00
67670Quick Release column, Ø 40 mm, anodized aluminium, ribbed, length 700 mm78,00
67671Quick Release Tischsäule, Ø 40 mm, Alu, Oberfläche geriffelt, Länge 680 mm80,00
68500Quick Release column, Ø 60 mm, anodized aluminium, smooth finish, others lengths upon requestauf Anfrage/on request/op aanvraag
68540Quick Release column, Ø 60 mm, anodized aluminium, smooth finish, length 420 mm75,00
68566Quick Release column, Ø 60 mm, anodized aluminium, smooth finish, length 680 mm93,00
68571Quick Release column, Ø 60 mm, anodized aluminium, smooth finish, length 730 mm98,00
68600Quick Release column, Ø 60 mm, anodized aluminium, ribbed, others lengths upon requestauf Anfrage/on request/op aanvraag
68640Quick Release column, Ø 60 mm, anodized aluminium, ribbed, length 420 mm68,50
68662Quick Release column, Ø 60 mm, anodized aluminium, ribbed, length 615 mm75,50
68666Quick Release column, Ø 60 mm, anodized aluminium, ribbed, length 680 mm81,00
68666-FQuick Release column, Ø 60 mm, anodized aluminium, ribbed, length 680 mm, base with flange Ø 76 mm 81,00
68671Quick Release column, Ø 60 mm, anodized aluminium, ribbed, length 730 mm78,00
68700Quick Release column, Ø 60 mm, STS, mirror polish, others lengths upon requestauf Anfrage/on request/op aanvraag
68740Quick Release column, Ø 60 mm, STS, mirror polish, length 420 mm116,00
68766Quick Release column, Ø 60 mm, STS, mirror polish, length 680 mm114,00
68771Quick Release column, Ø 60 mm, STS, mirror polish, length 730 mm120,00
69500Quick Release column, Ø 76 mm, anodized aluminium, smooth finish, others lengths upon requestauf Anfrage/on request/op aanvraag
69540Quick Release column, Ø 76 mm, anodized aluminium, smooth finish, length 420 mm85,00
69566Quick Release column, Ø 76 mm, anodized aluminium, smooth finish, length 680 mm97,00
69571Quick Release column, Ø 76 mm, anodized aluminium, smooth finish, length 730 mm112,00
69600Quick Release column, Ø 76 mm, anodized aluminium, ribbed, others lengths upon requestauf Anfrage/on request/op aanvraag
69640Quick Release column, Ø 76 mm, anodized aluminium, ribbed, length 420 mm75,00
69666Quick Release column, Ø 76 mm, anodized aluminium, ribbed, length 680 mm94,00
69671Quick Release column, Ø 76 mm, anodized aluminium, ribbed, length 730 mm97,00
69700Quick Release column, Ø 76 mm, STS, mirror polish, others lengths upon requestauf Anfrage/on request/op aanvraag
69740Quick Release column, Ø 76 mm, STS, mirror polish, length 420 mm99,00
69766Quick Release column, Ø 76 mm, STS, mirror polish, length 680 mm123,00
69771Quick Release column, Ø 76 mm, STS, mirror polish, length 730 mm129,00
69061Wall mount clamp for Ø 60 mm column, black vinyl10,00

Valid Value Added Tax (VAT) for deliveries to private customers within the EU is 21%. For residential customers outside the EU, the VAT in the respective home country (= shipping address) is taken.
